Silent Diesel Generator Set DG10000LNE
product Search
Product Category

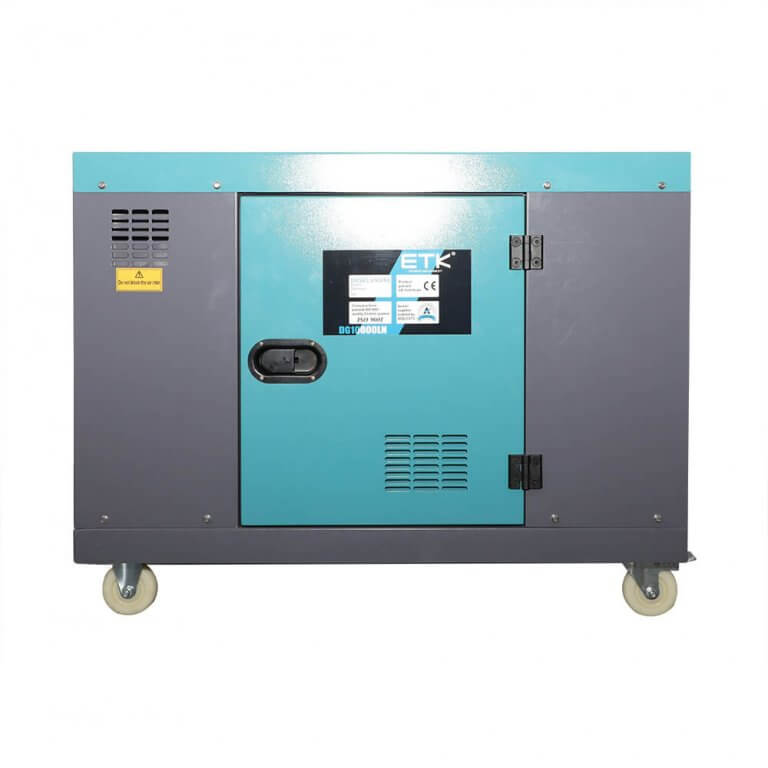

single phase 8kw silent diesel generator set DG10000LNE
Based on the humanized design, the diesel generator set is easy to observe the operation condition of the unit. Manual emergency shutdown can be quickly adopted. The inlet and exhaust air volume is strictly calculated.
Fillet type design, beautiful.
Description:
1. Noise, compact overall structure, small space;
2. The box body is of detachable structure. The box body is made of steel plate splicing.
3. The box body adopts multi-layer barrier impedance mismatch noise elimination structure and built-in large impedance noise elimination device.
4. The box body is rationally designed, with a large capacity oil tank inside the box body and two access doors on the left and the right at the same time to facilitate unit fault maintenance;
5. At the same time, there is an observation window and an emergency stop button on the box body to observe the operation of the unit and stop the unit quickly in case of emergency to avoid damage to the unit.
| Model | silent type Single phase diesel generator set |
| 8KW | |
| DG10000LNE | |
| Frequency(Hz) | 50/60 |
| Voltage(AC)(V) | 220/230/240 |
| Voltage(DC)(V) | 12 |
| Current(A) | 8.30 |
| Engine speed(rpm) | 3000/3600 |
| Power factor(cosφ) | 1 |
| Starting system | electric start |
| Rate power(Kw) | 7.5/8.0 |
| Net weight(kg) | 230 |
| Engine model | E110F(E) |
| Type | Single cylinder,vertical,direct injection,4-stroke,air cooled diesel engine |
| Cooling type | Force air-cooled |
| Crankshaft direction | Clockwise from flywheel end |
| Rated Output(Kw) | 9.6/10.5 |
| Bore × Stroke(mm) | 100*85 |
| Displacement(cc) | 667 |
| Fuel Tank Capacity(L) | 15 |
| Packing dimensions(L×W×H)mm | 1280*700*1100 |
| Lube-oil Capacity(L) | 1.80 |
